GSV-303

Control part	Voltage AC 220V/60Hz, KSC3304, 1.5m W/plug ALARM INPUT 1~3 Channel Shut off part output DC 36V/6A±20% Power consumption 3W Function(1button) Open, Close, Buzzer stop, Reset Operating Temp. & Hum. -20℃~50℃, under 95%(RH) Open/Close method Remote open/close Shut off part in use SV-125, SV-150, SV-200, SV-250 SV-300, SV-350, SV-400, SV-500 Dimensions(mm) W255× H320× D140 Weight(kg) 10
Shut off part 125A~150A	MODEL SV-125 SV-150 Shut off Method Geared Motor Standard Valve 125A 150A Voltage DC36V±30% Current Min 1.5A, Max.3A Manual operation Manual handle operating method Torque (Kgf·cm) 11,000 Operating Temp. & Hum. -20~50℃, under Rh95% Open/Close speed Within 30 seconds Dimmensions(mm) W455 X H480 X D260 Weight(kg) 20.3 20.7
Shut off part 200A~500A	MODEL SV-200 SV-250 SV-300 SV-350 SV-400 SV-500 Shut off Method Geared Motor Standard Valve 200A 250A 300A 350A 400A 500A Voltage DC36V±30% Current Min 1A, Max.3A Manual operation Manual handle operating method Torque (Kgf·cm) 13,000 27,000 20,700 35,000 Operating Temp. & Hum. -20~50℃, under Rh95% Open/Close speed Within 30 seconds Dimmensions W350 X H270 X D290(mm) Weight(kg) 17.5

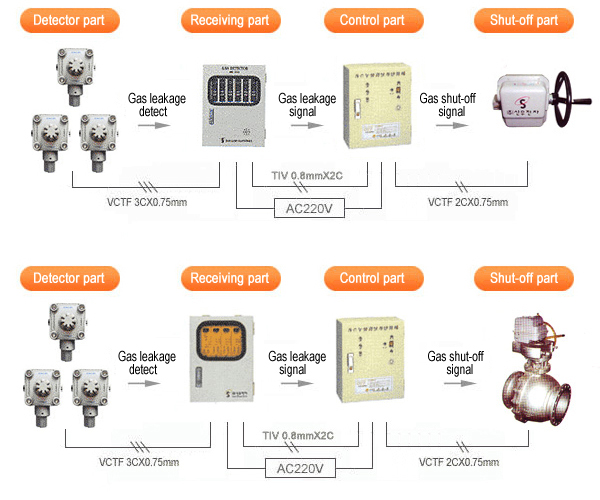

It has the function of remote switch gear and automatic Shut off for gas leakage. It is available to discern the open/close status from the control device. It allows rapid gas Shut off of within 30 seconds. It can be used for the valves of gas pipes. It can be used interlocking alarm up to 3 circuits. It can be used for the automatic control system of various plants and air-conditioning and heating equipments of industrial facilities. It can be open and closed manually in case of power failure or emergency.
