GSV-103

Control part	Voltage AC 220V/ 60Hz ALARM INPUT 3 Channel Shut off part output DC 12V/500mA±10% Power consumption 3W Function(1button) Open, Close, Buzzer stop, Reset Operating Temp. & Hum. -20 ~ 50 ℃, under Rh95% Open/Close method Remote and Manual operation Shut off part in use SV-20, SV-20B, SV-20C Dimensions W86× H130× D45 Weight(kg) 1.2
Shut off part	MODEL SV-20 Shut off Method Geared Motor Standard Valve 15A, 20A, 25A Voltage DC12V±/500mA±30% Current Min 200㎃, Max 500㎃ Manual operation Clutch push method Torque (Kgf·cm) 65 Operating Temp. & Hum. -20~50℃, under Rh95% Open/Close speed Within 10 seconds Dimmensions(mm) W110 × H165 × D75 Weight (g) 674

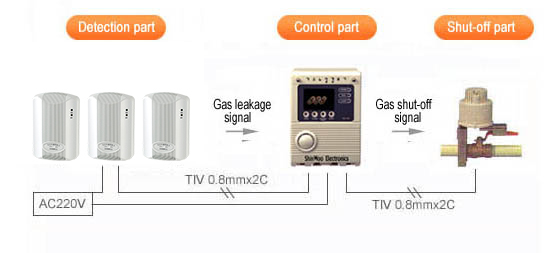

It has the function of remote switch gear and automatic Shut off for gas leakage. It is available to discern the open/close status from the control device. It allows rapid gas Shut off of within 10 seconds. It can be used for the valves of gas pipes. It can be used interlocking alarm up to 3 circuits. It can be used for the automatic control system of various plants and air-conditioning and heating equipments of industrial facilities. It can be open and closed manually in case of power failure or emergency.
